PRODUCT

COT-200
3D Video Digital Laparoscopy System (Chip-On-Tip Type)
Features & Benefits
  • Depth perception through 3D stereoscopic image
  • Allows more accurate and precise operation
  • Natural color and depth perception
  • Short learning curve
  • No dizziness on long operations
Characteristics
All in one system
(CCU + Light source + Recorder)
No more separate main unit,
light source and recorder
Optimizing operation room
with optional glass-free 3D Console Monitor

Main Unit(Detail)

  • All in one system (CCU + Light Source + Recorder)
  • Binocular Disparity Control
  • User-friendly GUI
  • Various video output (HDMI x3/ HD-SDI(L), HD-SDI(R)
  • Video recording and playback
  • Light intensity control
  • 3D display ,3D Alignment, White balance,3D play ,3D rotate
  • Integrated recording system
  • Bright LED

Camera & Scope

Chip on Tip Technology
  • Optimal Chip-On-Tip® camera performance
  • Enabling minimally invasive imaging
  • Crystal clear image (Full HD , 1920 x 1080 (30P))
  • Small and light camera head
  • Stereo laparoscope : Ø10 mm 0˚, Ø10 mm 30˚
  • User-friendly key button on camera head

Applications

General Surgery
  • General Surgery

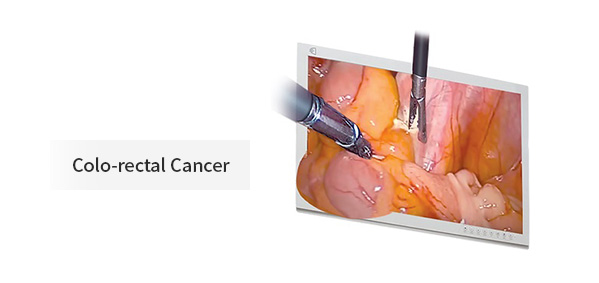

  • Colectomy
  • Rectal surgery
  • Common bile resection
  • Gastrectomy
  • Pancreatectomy
  • Bariatric surgery
  • Common bile duct surgery

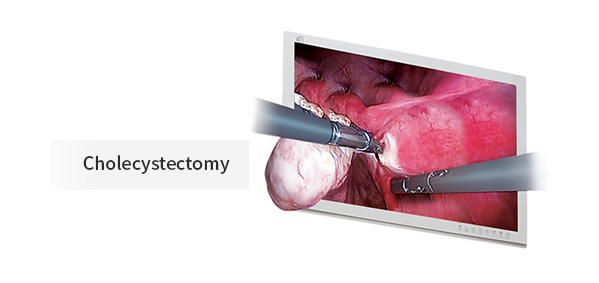

  • Cholecystectomy
  • Colectomy
  • Splenectomy
  • Gastric bypass

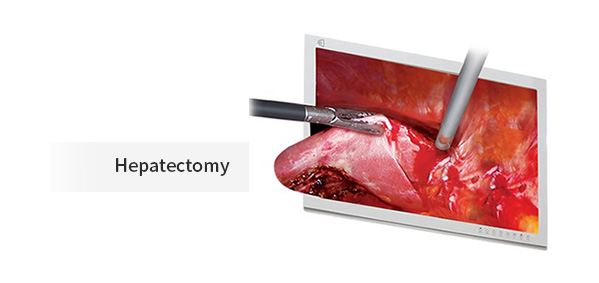

  • Hepatectomy
  • Adrenalectomy
  • Small bowel resection
Cardiothoracic Surgery
  • Lung cancer
  • Pulmonary emphysema
  • Esophagus cancer
  • Esophageal stenosis
  • Chest wall tumor
  • Cardiac surgery
Obstetrics and gynecology

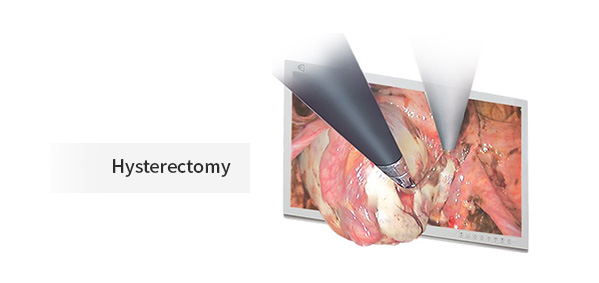

  • Hysterectomy
  • Ovarian cystectomy

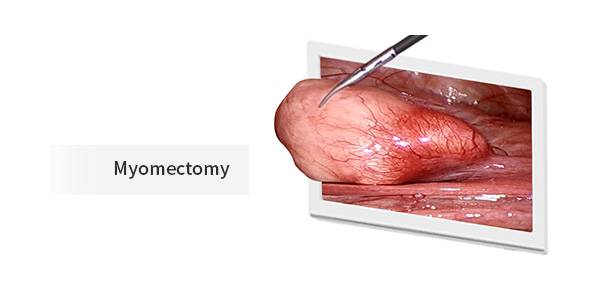

  • Myomectomy
  • Hysterectomy
  • Salpingo-Oophorectomy
  • Pelvic lymph node dissection(PLND)
Urology
  • Nephrectomy (Total or partial)
  • Renal cystectomy
  • Pelvic reconstruction
  • Prostate tumor

More Realistic Stereo Image

COT-200 Accessories (Option)

3D Console Monitor
Optimizing Operation Room
  • No 3D glasses required, and it keeps optimal distance between eye and console monitor.
  • No binocular disparity control required
  • Distortion free 3D image
  • Full HD resolution for each left and right eyes
  • 3D laparoscopic surgery using COT-200 has the advantage of safely
    performing surgery while feeling haptic perception, something that is
    not available in robotic-assisted surgery.

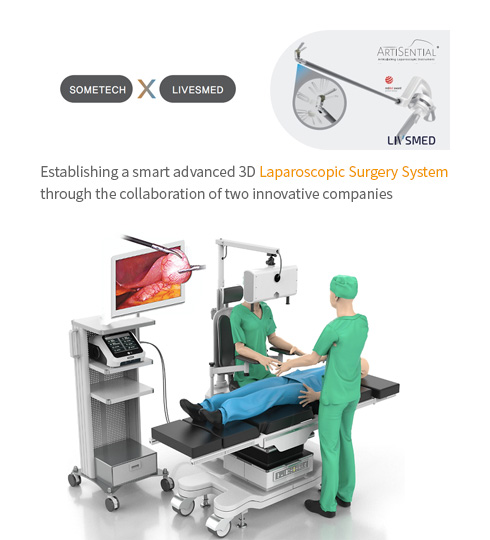

Kim's console
  • Patented Console 3D monitor, no 3D glasses required
  • Safer than Robot-assisted operation without manipulating heavy arm
  • Proper ergonomic maneuverability
  • Combining surgical comfort with practicality
  • Headrest and functional chair
  • Armrest fixation
Combining Surgical Comfort & Practicality
Kim's Chair offers customizable seat configurations with fully adjustable
backrest and armrests to provide optimal support to meet the surgeon’s
specific positioning preferences.

It’s superior pedal access and a stable, yet mobile, design helps to facilitate
clinical performance.
Human Touch 3D Laparoscopy
Surgery advantages
  • 3D Laparoscopy depth perception recognition (Complementing 2D shortcomings)
  • Haptics from surgeon's direct surgery(complementing robot-assisted surgery shortcomings)
  • Precise and safe
  • Minimization of medical accidents

Product Specifications

COT-200 System
Functions
  • FULL-HD Live Image
  • White Balance
  • Image Adjustment
  • Minimization of medical accidents
- Contrast, Gamma, Exposure
- Image Rotate
- Still Capture & Video Record
- Storaged Image File Play
- System Time setting
Camera Resolution 1920 x 1080/ P30
Video Out(HDMI) HDMI(GUI), HDMI(B), HDMI(A)
*For seeing GUI information connect the monitor cable to HDMI(GUI) Port
Connect the monitor cable to the HDMI (GUI) port for GUI information
Dimension Width(310mm) x Height(200mm) x Depth(330mm)
Weight Approx 5.3kg (MiDAS I)
Other Ref 1 : COT-200 Camera Head shares the sabe main body (MiDAS I).
Ref 2 : COT-200 Camera Head is integrated with the Scope. A Chip-on-tip 3D Camera is locasted at the end of the Scope
Ref.3 : COT-200 Camera Head Assembly is sterilized at low temperature.
