VOMS-400(Spine/Brain)
4K 3D Video Digital Operating Microscopy System
Features
- Video Output : Ultra High Definition (3840 x 2160)
- 3D Format : Side by side
-
Magnification :
- Optical zoom: Three type turret lens (D.L 20mm(40x), D.L 40mm(20x), D.L 80mm(10x)
// 32” Monitor
- Digital Zoom : 1.0x ~ 2.0x
- Calculation value of zoom : Optical zoom x Digital zoom - Working Distance : 400mm
-
User Interface :
- 10.4” TFT Touch LCD
- Handheld remote-control keypad
- Programmable foot pedal switch - XYZ Control : Motorized
- Recording Device : MPEG-4/H.264 File Extension(AVI)
- VOMS-400(Spine/Brain)
- Redefining surgical visualization with innovative 3D 4K Technology
Characteristics
- A New Trend In Global Surgery HUD (Head up display) 3D Video Surgical Microscope
- Innovative Change of OP Room
-
Contributes surgeons to concentrate on surgery due to effective connection with other surgical devices and it also optimizes the effective workflow
during surgery.
- True Head-Up Posture
- Surgeon's head-up posture will be maintained throughout the whole surgery by watching the 4K 3D monitor, providing freedom from inevitable neck pain, back pain, eye strain, and headache
- Easy Cooperation and Education
-
Everyone in the OR cooperates easily and observes every detail of the surgery as they watch same real time 3D images together with the surgeon.
Captured 3D surgical images can be used for training and education. In the past, Loupe or surgical microscopy was used.
Currently, 3D surgery using high-resolution 4K 3D video microscope is being developed to recognize the depth of the lesion through the monitor and
to further refine and precise surgery.

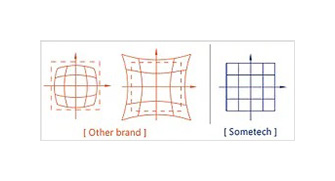

Minimized Distortion
-
Sometech`s patented lens technology minimizes chromatic aberration,
allowing surgeons to be free from eye strain, dizziness, and headache caused by distortion.

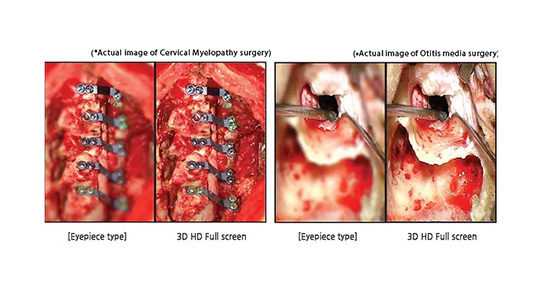

Fine focusing and Wide Field of View
-
Sometech’s patented image processing technology provides crystal
clear images for the immediate and the surrounding area.
Head up System
- Relief from neck and lumbar pain, eye strain and headache.
Touch screen GUI
- 10.4” Wide size TFT touch LCD
-
- Programmable foot pedal switch
- Video color control
- Light intensity control
- 3D alignment
- 3D image rotation
- 3D Video recording
- Zooming control
Easy and precise movement
-
Ergonomic design allows easy and precise movement.
Surgeons can easily place the camera to focus on surgical area.
Adjustable optical zooming through motorized turret
X,Y Axis Movement
-
C-curve arm for the straight view of surgeon
Ergonomic head up structure
Image shake reduction
Optimizing Operating Room (OR) space
- Motorized Vertical, Horizontal and tilting extension arm
Microscope head
-
Multi-lens (20/40 mm) for anterior and posterior surgery
Motorizing movement controlled by foot pedal
Integrated wide angle viewer
Z axis movement
Caster lock and foot switch
-
One touch locking system
Programmable footswitch
Applications
 |
Brain/Spine
|
|---|---|
 |
ENT/PS/DER
|
Product Specifications
| Division | Performance | |
|---|---|---|
| Power input | 100-240V AC 50/60Hz | |
| Interface | TFT Touch LCD, Foot Switch, Remote Keypad | |
| Light intensity | Levels 1 to 10(where, Level 0=OFF) | |
| Light color temperature | 4500K°± 5% | |
| Video recording method | MPEG-4 / H.264 File Extension (AVI) | |
| Resolution | 4K 3D / 3840 x 2160 / 60p | |
| Video output | Ultra-HD(3840x2160) HDMI x 4 | |
| 3D format | Side-by-side (SBS) | |
| Magnification | Optical Zoom | 1.0x ~ 4.0x |
| 3 Turret [SP.BR] | D.L 20mm(40x)-40mm(20x)-80mm(10x) / Based on 31" Monitor | |
| Digital Zoom | 1.0x ~ 2.0x | |
| Working distance | 3 Turret Lens : W.D= 400mm | |
| Micro focus | Motorized X, Y, Z control | |
