DCS PRO
Medical camera system
Features
- Full HD(1080i 60 Frames)
- Optimal for tele-medicine
- Various applications and user friendly functions
Characteristics

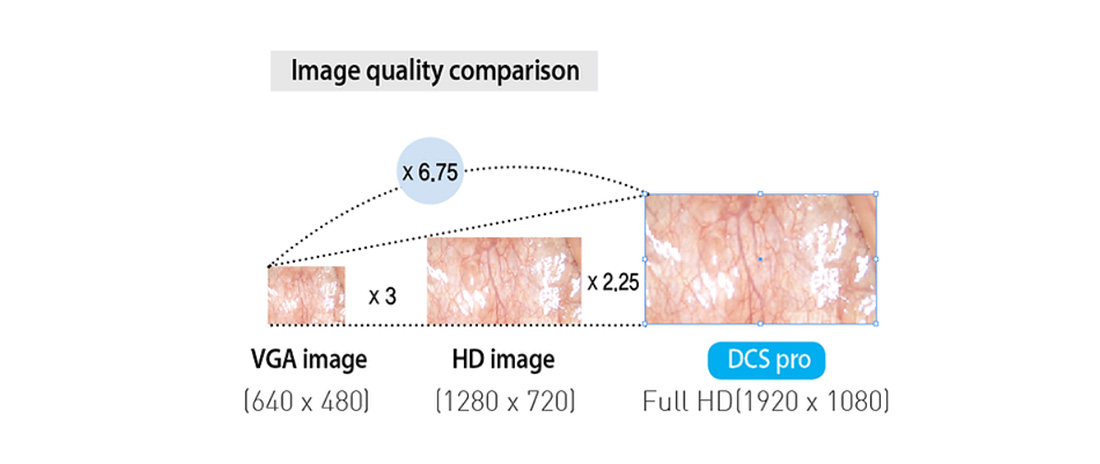

Full HD(1080i 60 Frames)
- User can adjust the resolution depending on the monitor ratio and see crystal clear images projected on the screen.
Optimal solution for Telemedicine system
- This is the most suitable medical camera for telemedicine system that enables
remote-imaging treatment and prescription through network provided by qualified
medical professionals.
Various comparison and display. (1 to 4 frame)
-
Dr. Camscope allows simultaneous view of multiple pictures without worrying about the loss of captured data.
A selection of captured images is available for comparison, and a selected image can be enlarged from 1.0 times to 3.0 times with Zoom control.
Joystick
-
Convenient joystic with each direction that can lead to freeze, save and zoom images conveniently.
- 18W LED Lamp loaded (1.2 times brighter than Halogen type)
-
This is the most suitable medical camera for telemedicine system that enables remote-imaging treatment and prescription through network provided by qualified medical professionals.
18W LED Lamp is brighter than 100W Halogen Lamp. It has 6500 K color temperature nearly same with natural light, which makes it possible to realize clearer image than Halogen lamp. Its life span is 30,000 hours and uses low power with 18W, hence, more energy efficient than
Halogen or HID lamp.
HDMI Outputs
- Easy Connection with PC / Laptops
- DCS Pro light source can be easily connected to a computer via USB 2.0. Users can save digital data on a computer.
- GUI control with Mouse
- Convenient and easy saving, viewing and menu setup with Mouse.
- Auto Light on-off
- Thanks to Auto Light On-Off function, the light source automatically turns on or goes into standby mode when the Camera Probe connects to/ detaches from the Holder.

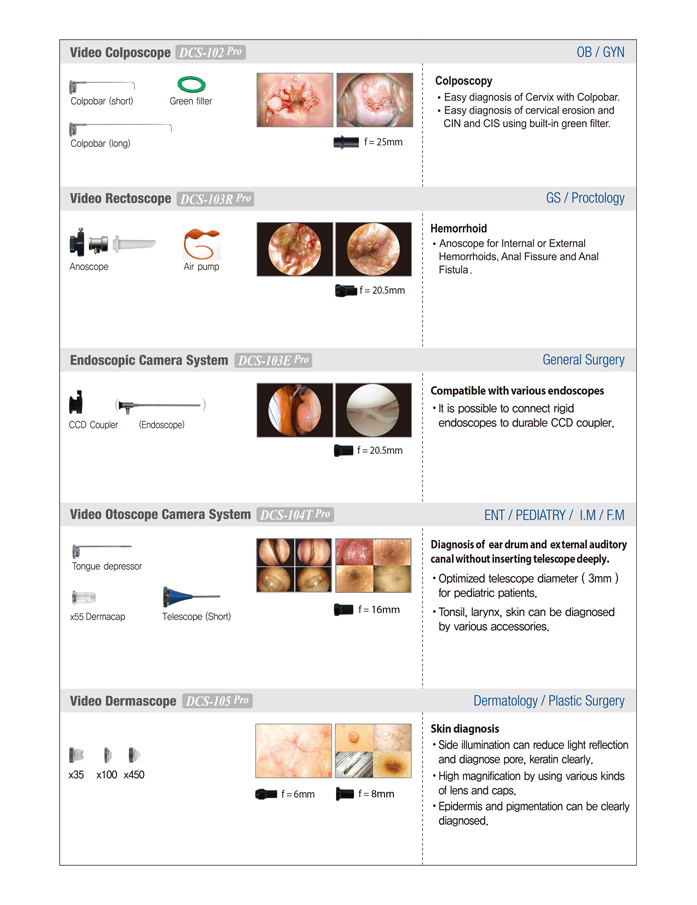

Main Unit
- Video colposcope (DCS-102 Pro)
- Video dermascope (DCS-105 Pro)
- Video rectoscope (DCS-103R Pro)
- Video irisscope (DCS-106 Pro)
- Endoscopic camera system (DCS-103E Pro)
- Video scope for optician (DCS-108 Pro)
- Video otoscope (DCS-104T Pro)
Unified applications with various accessories
Product Specifications
| Functions |
- Brightness, Sharpness, Contrast, Gamma, Exposure
- Image Conversion - Selectable color mode(User 1/2/3/Default) - Storaged Image File Play - Create Folder, Delete Folder & File - System Time setting |
|---|---|
| Camera Resolution | 1920 x 1080 |
| Video Output | 1920 x 1080i, 60 frame, HDMI |
| PC Interface |
USB 2.0 / Slave Mode Directly connected to the PC application |
| Internal Storage | 32G |
| External Storage interface | USB 2.0 Memory Stick / FAT32 |
| Still image Capture | 1920 x 1080 jpg File |
| User Key Interface | 5 Directional key |
| Light Source | 18W LED lamp, Color temperature(4800˚K), Adjustable light intensity |
| Cable Length | 2.0M |
| Foot switch | For Freeze & Still Capture |
| AC Input | 90~264VAC Max 45Watt Universal AC Input / Full range |
| Dimension | Width(209mm) x Depth(101mm) x Height(250mm) |
